Description
Supply Voltage: 1.8 – 5V DC
Interface: I2C (up to 3.4MHz), SPI (up to 10 MHz)
Temperature: -40 to +85°C
Humidity: 0-100%
Pressure: 300-1100 hPa
Temperature: 0.01°C
Humidity: 0.008%
Pressure: 0.18Pa
Temperature: +-1°C
Humidity: +-3%
Pressure: +-1Pa
I2C address
BMP280 Features
Package 2.5 mm x 2.5 mm x 0.93 mm metal lid LGA
Digital interface I2C (up to 3.4 MHz) and SPI (3 and 4 wire, up to 10 MHz)
Supply voltage VDD main supply voltage range: 1.71 V to 3.6 V
VDDIO interface voltage range: 1.2 V to 3.6 V
Current consumption 1.8 uA @ 1 Hz humidity and temperature
2.8 uA @ 1 Hz pressure and temperature
3.6 uA @ 1 Hz humidity, pressure and temperature
0.1 uA in sleep mode
Package:

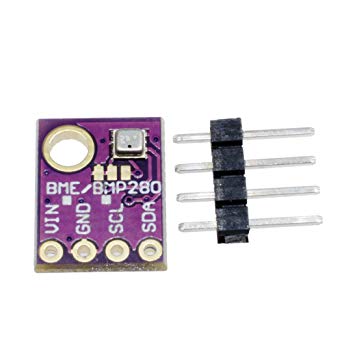

1 X GY-BMP280-3.3 Pressure Sensor
1 X 6P Pin Header
BME280, the precision sensor from It, is soldered onto PCB.
Not only the pressure and the temperature, this sensor can measure humidity.
It uses both I2C and SPI (supports 3-, 4-wire SPI) interface
Specifications:
Supply Voltage: 1.8 – 5V DC
Interface: I2C (up to 3.4MHz), SPI (up to 10 MHz)
Operational Range:
Temperature: -40 to +85°C
Humidity: 0-100%
Pressure: 300-1100 hPa
Resolution:
